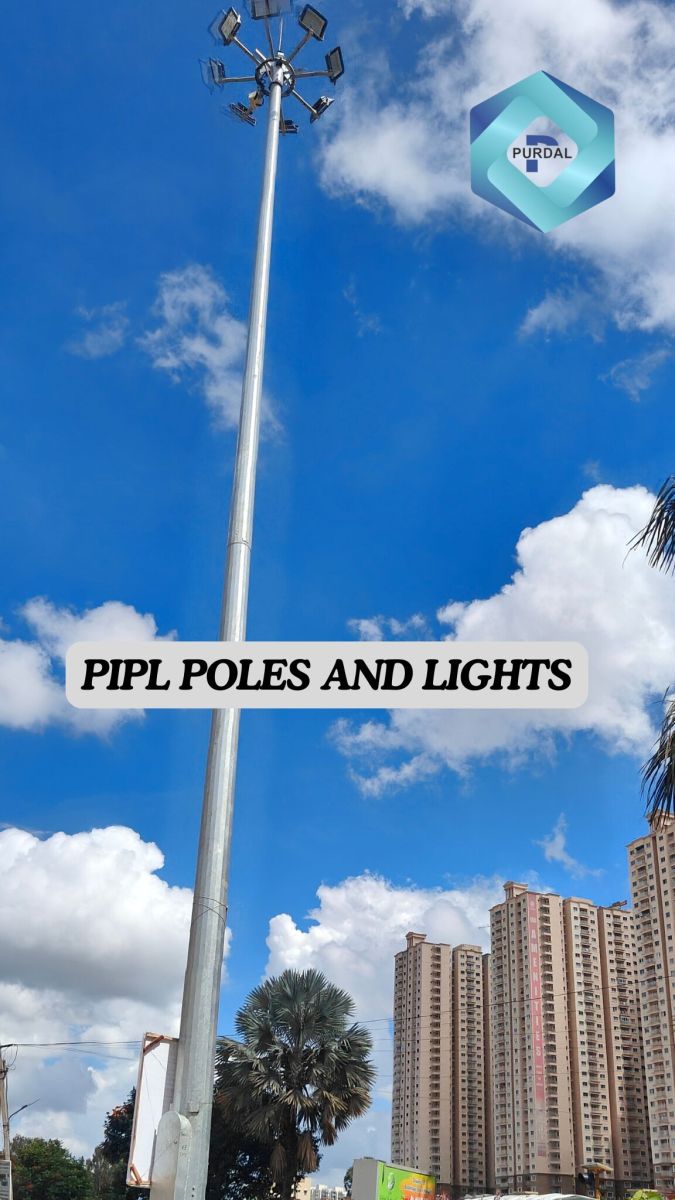

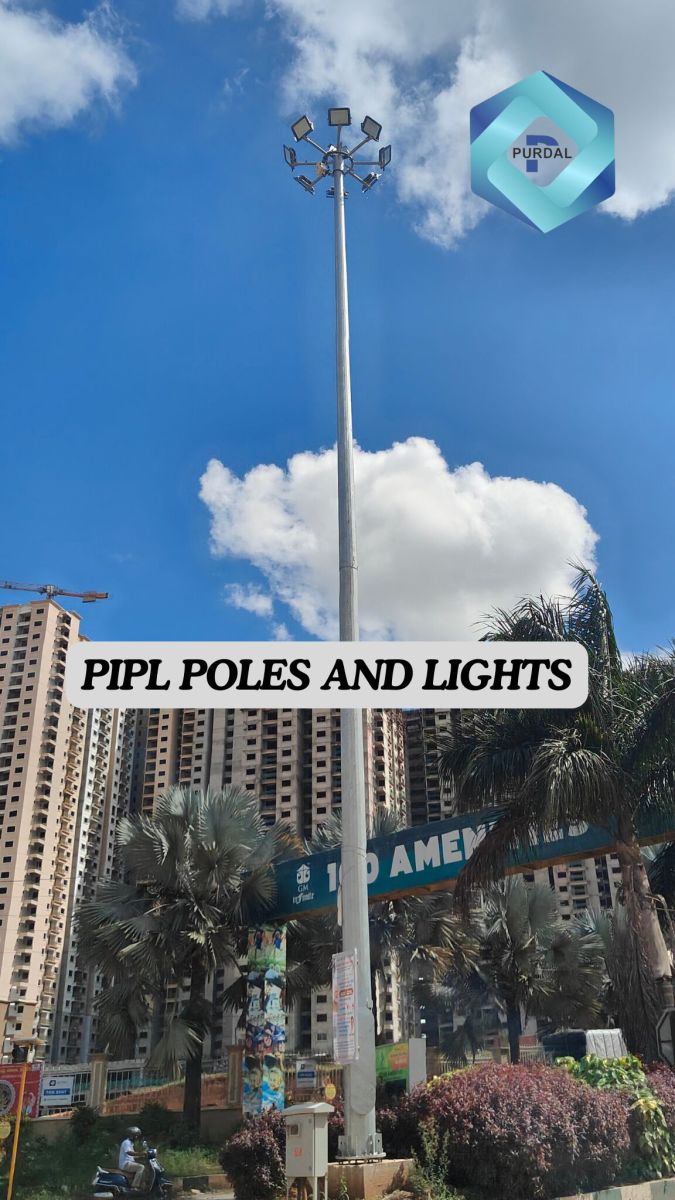

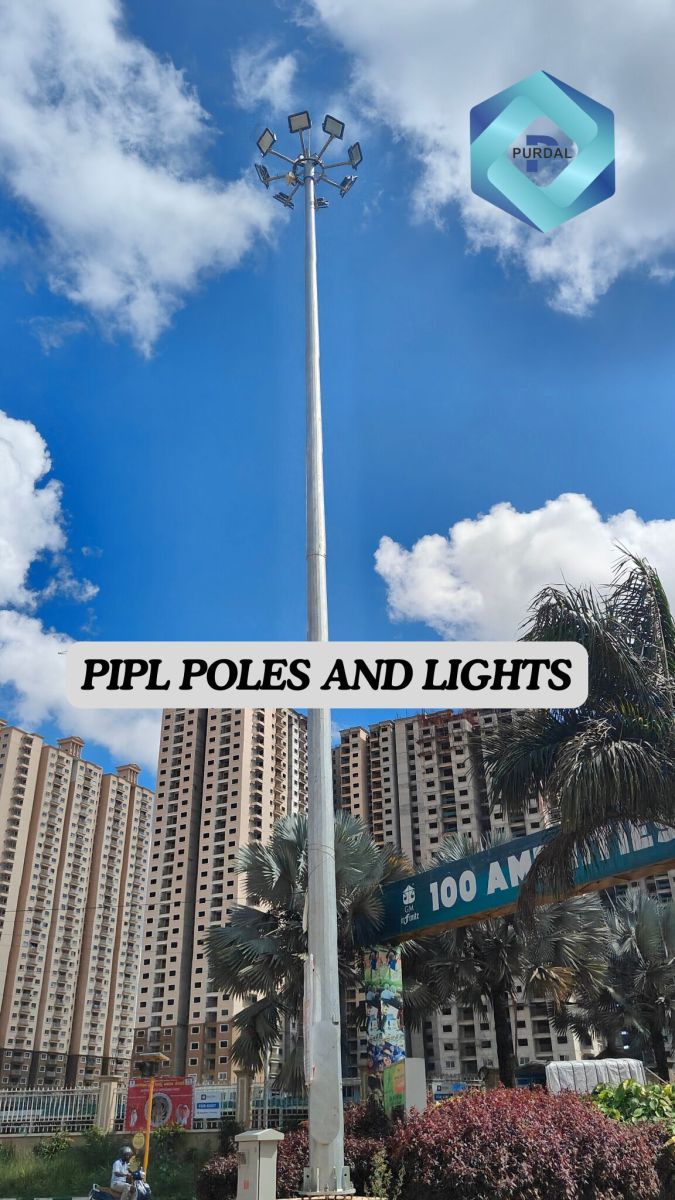

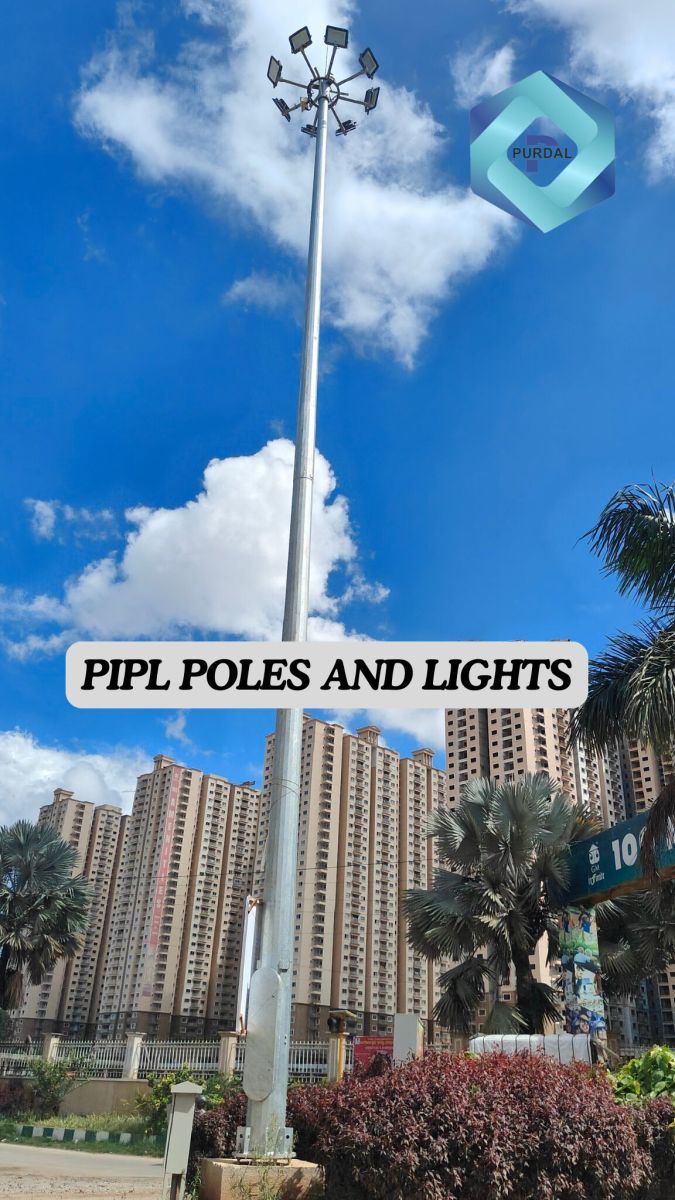

High Mast Lighting Pole Pipl

The Outdoor High Mast Lighting Pole with Eight Light Fixers is designed for high-performance illumination over large outdoor areas. Engineered for strength, stability, and longevity, it ensures uniform lighting coverage and easy maintenance. This pole is ideal for industrial, commercial, and public lighting projects requiring maximum brightness and wide coverage.

Technical Specifications

• Pole Type: High Mast Lighting Pole


• Height: Available in 12m, 16m, 20m, and 25m (customizable as per project requirement)


• Material: Mild Steel (MS) or Hot Dip Galvanized Iron (GI)


• Thickness: 3 mm to 6 mm (as per height and wind zone)


• Finish: Hot-dip galvanized (minimum 65–80 microns) for superior corrosion resistance


• Top Head Frame: 8-arm circular head frame to mount eight LED floodlights


• Lighting Fixture Compatibility: 100W – 300W LED floodlights


• Operation Type: Fixed type / Raising and lowering type (with winch mechanism – optional)


• Base Plate: Heavy-duty MS plate with anchor bolts and foundation template


• Wind Resistance: Designed to withstand wind speeds up to 180 km/h


• Cable Entry: Provided through base and internal wiring provision

Key Features

• 8-arm bracket provides wide and even light distribution


• Weatherproof and rust-resistant galvanized finish


• Low maintenance and long-lasting performance


• Compatible with LED floodlights of all leading brands


• Customizable height and design options available


• Suitable for both manual and motorized operation systems

Applications

• Stadiums and sports complexes


• Industrial zones


• Large parking lots


• Highway junctions


• Public grounds and town squares


• Container yards and seaports
